Automating Interface Configuration Using NETCONF and YANG Suite

1. Objective

The main objective of this lab is to automate basic network configuration tasks using NETCONF instead of traditional manual CLI commands.
In this lab, we configure a router interface by assigning a static IP address, enabling the interface, and adding a description using YANG models.

The purpose is to understand how model-driven configuration works and how NETCONF helps in pushing consistent, validated, and repeatable configurations on network devices.

---

2. Why This Matters

In real-world networks, configuring devices manually through CLI is time-consuming and often leads to configuration errors. As networks scale, repeating the same configuration across multiple devices becomes difficult to manage and maintain.

Using NETCONF with YANG helps to:

• Reduce human errors
• Make configurations repeatable and consistent
• Apply standard configurations across devices
• Manage network changes in a controlled and predictable manner

This approach is commonly used in network automation platforms and Network Management Systems (NMS), where configurations are pushed programmatically instead of manually.

---

3. Lab Environment

The following environment was used for this lab:

• Router: Cisco CSR1000v
• Automation Protocol: NETCONF
• Tool: Cisco YANG Suite
• YANG Models Used:
  • ietf-interfaces
  • ietf-ip
• Operating System: Ubuntu Linux

Cisco YANG Suite is used to explore YANG models and build NETCONF RPC payloads, making it easier to understand how structured configurations are created and applied.

---

4. Requirements

Before starting this lab, ensure the following requirements are met:

• Cisco YANG Suite installed and running
• NETCONF enabled on the Cisco CSR1000v router
• SSH access enabled and properly configured
• Basic understanding of YANG models and their structure

If you are new to YANG, it is recommended to read my previous post on YANG basics before continuing with this lab.

---

5. Configuration Tasks

In this lab, we will perform the following configurations on the router:

• Assign a static IP address to GigabitEthernet2
• Enable the interface
• Add an interface description

---

6. Automation Approach

There are multiple ways to configure the router using NETCONF, such as:

• Python scripts
• ncclient library
• NETCONF over SSH

We can also use Cisco YANG Suite to build the NETCONF RPCs and later export them for automation.

YANG Suite is not fully designed for large-scale automation by itself, but it is very useful for:

• Exploring YANG models
• Building and validating RPC payloads
• Exporting payloads for Python or Ansible automation

In this lab, since we are configuring a single router, YANG Suite is sufficient. For large-scale deployments, Python automation would be the preferred approach.

---

7. Building NETCONF RPC Using YANG Suite

To build the XML payload, we will use Cisco YANG Suite.
If you do not have YANG Suite installed, please install it first. In this setup, YANG Suite is already installed.

---

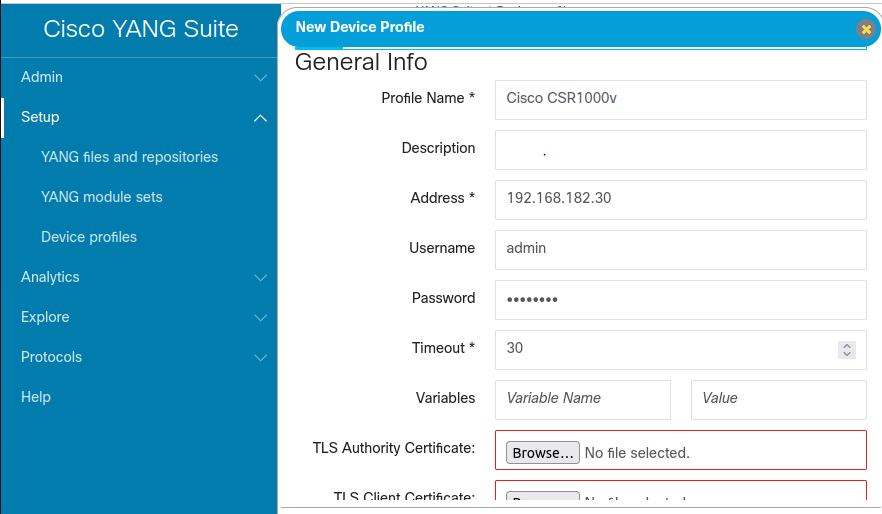

7.1 Create Device Profile

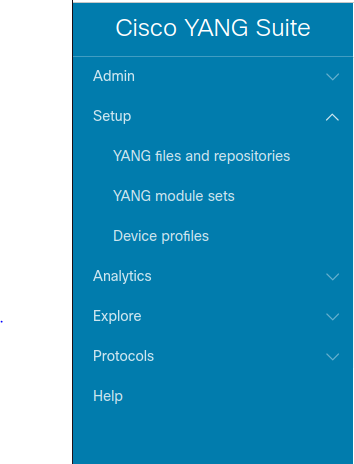

Open YANG Suite and navigate to:

Setup → Device profiles

Click Create new device.

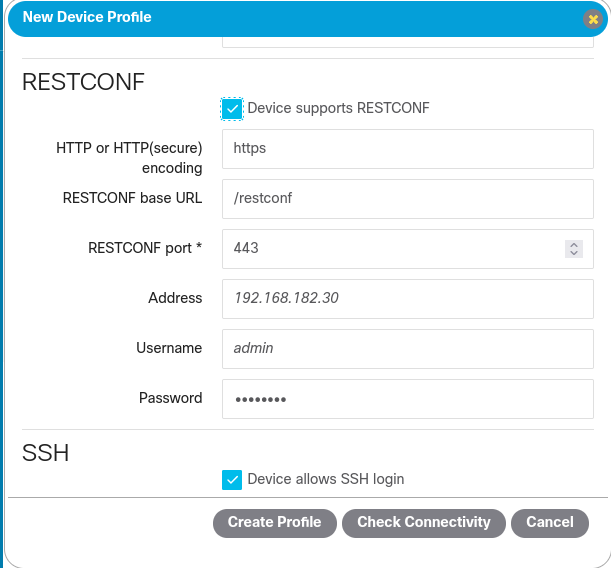

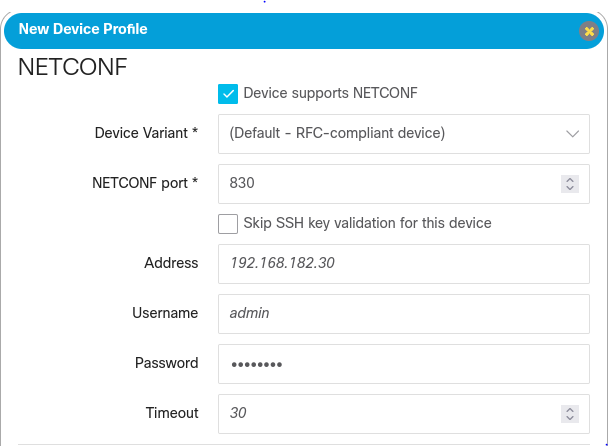

Fill in the required device details.
Make sure to:

• Check Device supports NETCONF
• Select Skip SSH key validation if your device setup requires it

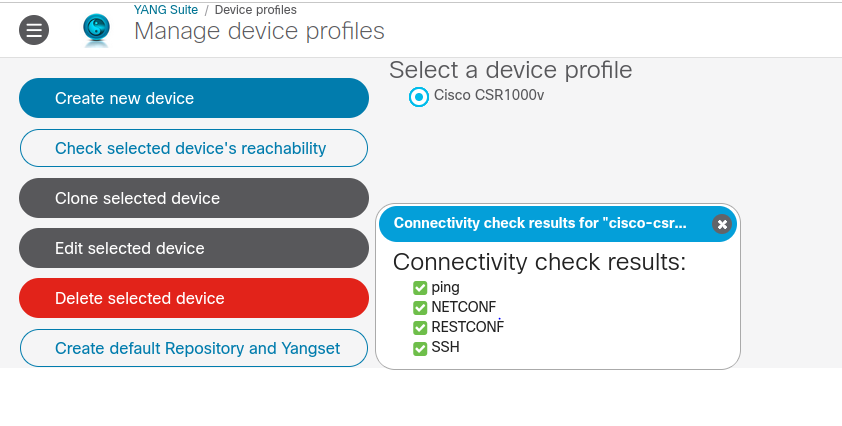

Click Check Connectivity to verify access.

Once verified, click Create Profile.

---

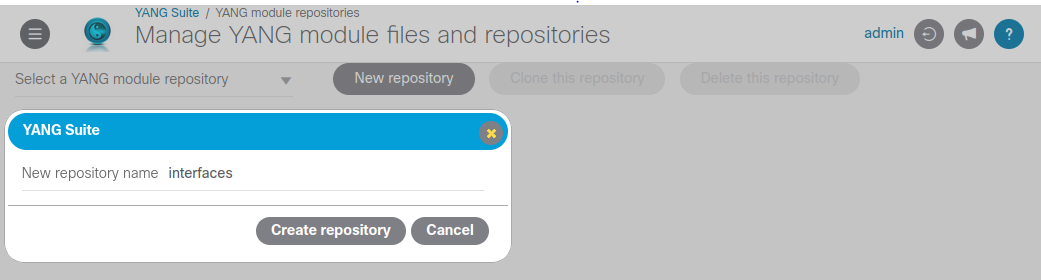

7.2 Create a YANG Module Repository

In YANG Suite, a repository is a collection of YANG models.

Navigate to:

Setup → YANG files and repositories

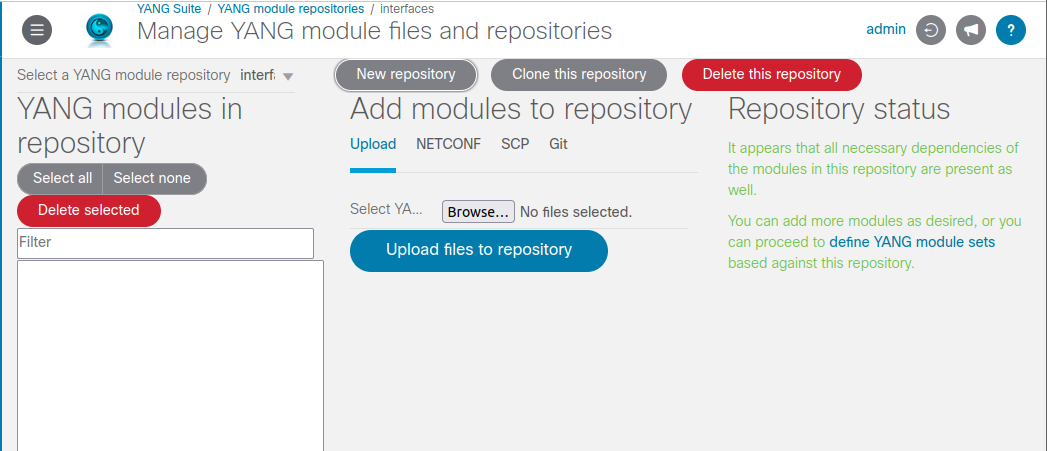

Click New Repository, give it a name, and create it.

After creation, the repository will be empty.

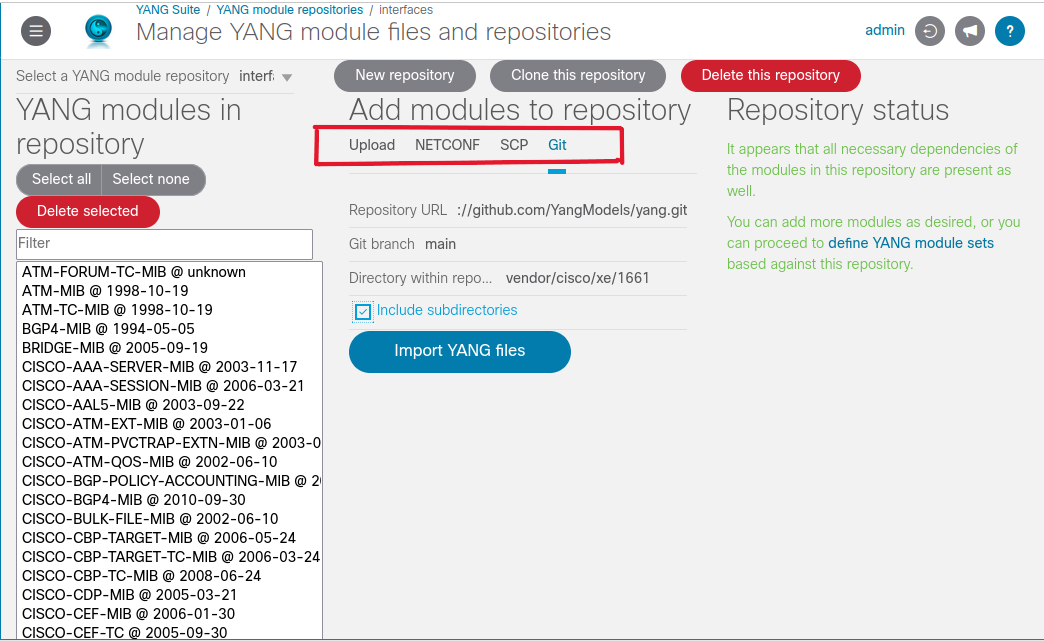

Under Add modules to repository, you can:

• Import models from GIT (OpenConfig or YANG Models repo)
• Or retrieve models directly from the device using NETCONF

Select the appropriate method and click Import.

Once completed, the repository will be populated with supported YANG models.

---

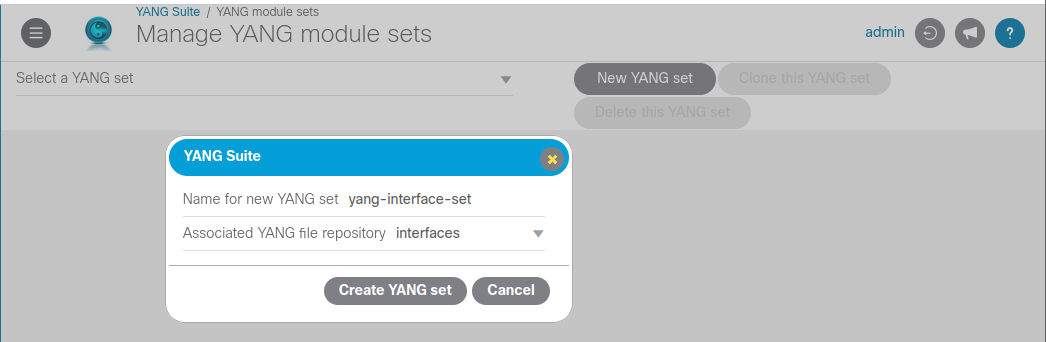

7.3 Create a YANG Module Set

A YANG module set is a subset of models from a repository.

Navigate to:

Setup → YANG module sets

Click New YANG set, name it, and associate it with your repository.

Add the ietf-interfaces module to the set.

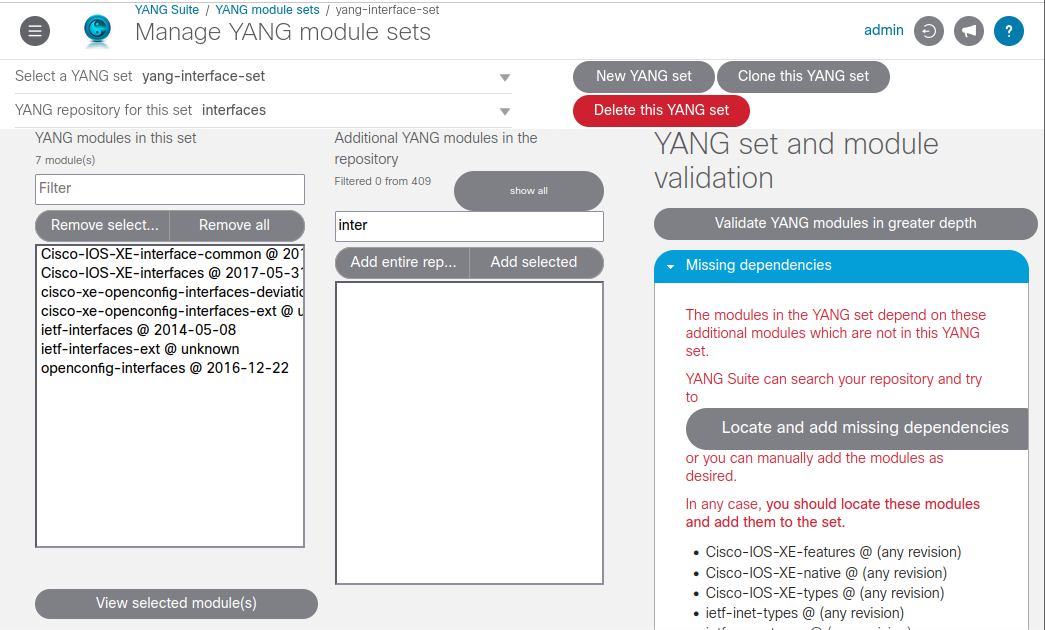

YANG Suite may detect missing dependencies. Click Locate and add missing dependencies to resolve them automatically.

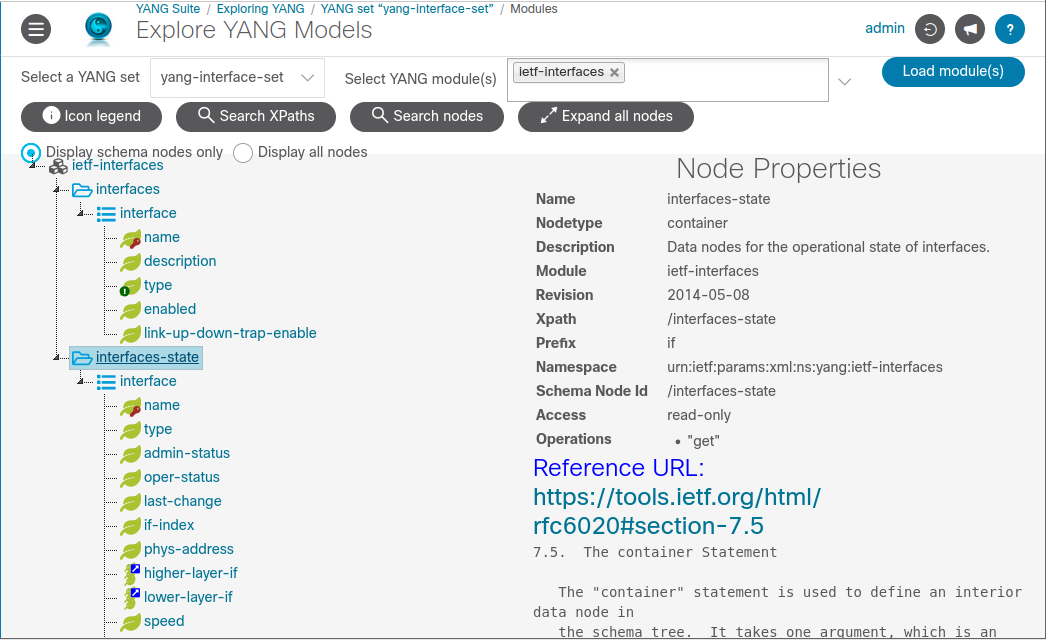

You can now explore the model using:

Explore → YANG

This is one of the best ways to understand YANG structures.

---

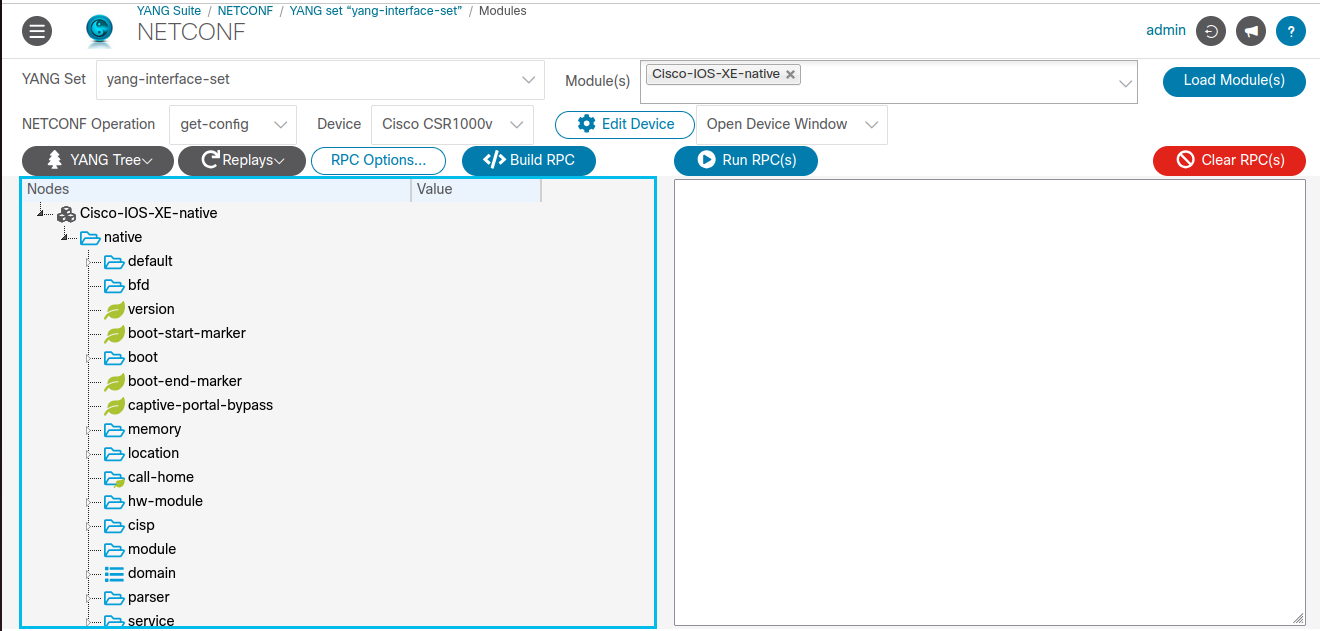

8. Building and Sending NETCONF Messages

Navigate to:

Protocols → NETCONF

Select:

• The YANG set you created
• The ietf-interfaces and ietf-ip modules

Click Load Module(s) to view the YANG tree.

---

8.1 Current Interface State

Below is the current state of GigabitEthernet2.

Our goal is to:

• Add a description
• Assign IP address and subnet
• Enable the interface

---

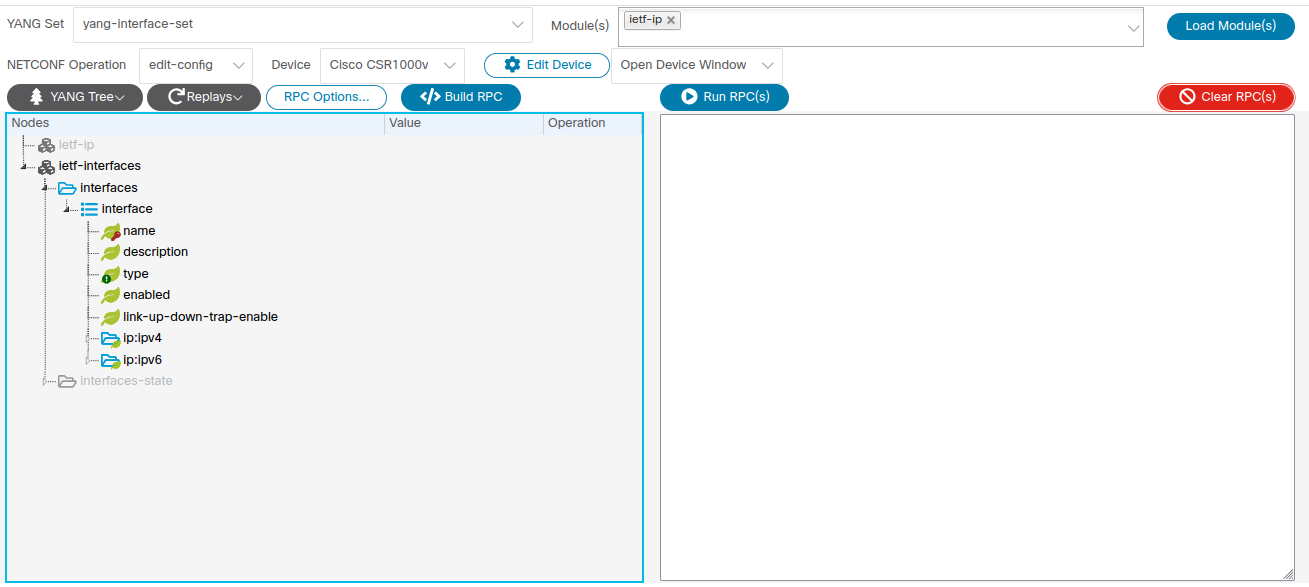

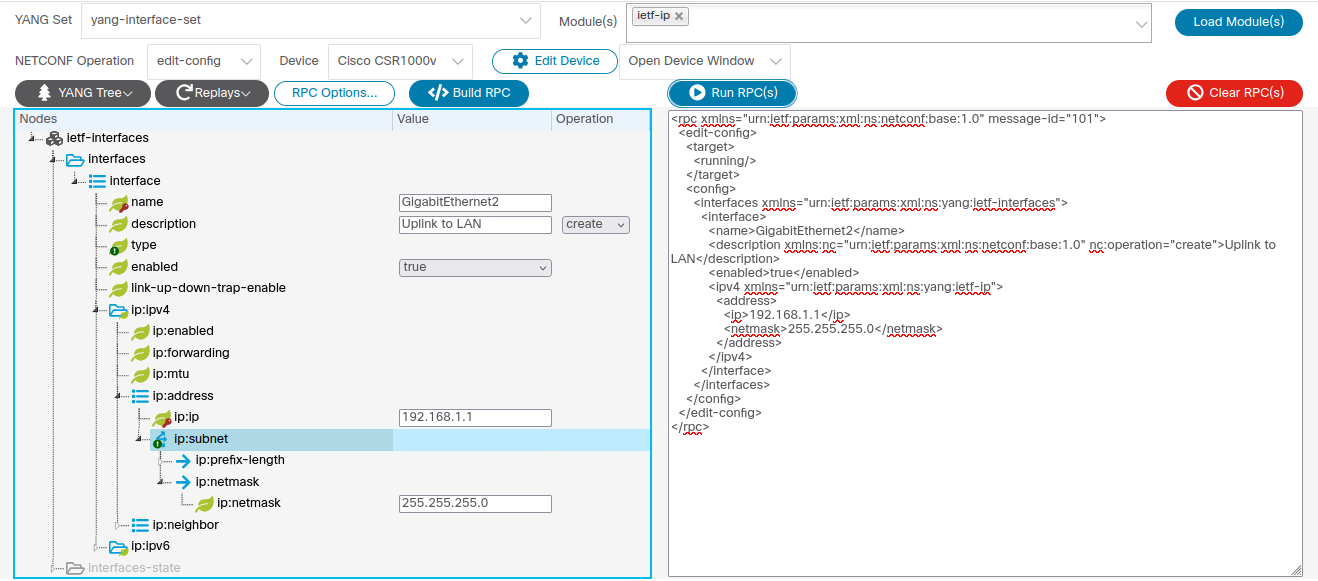

8.2 Build the RPC

In Protocols → NETCONF, set:

• Device: Device profile created earlier
• Module: ietf-ip
• Operation: edit-config
• YANG Set: Previously created set

Click Load Modules.

Expand the YANG tree and update the required values.

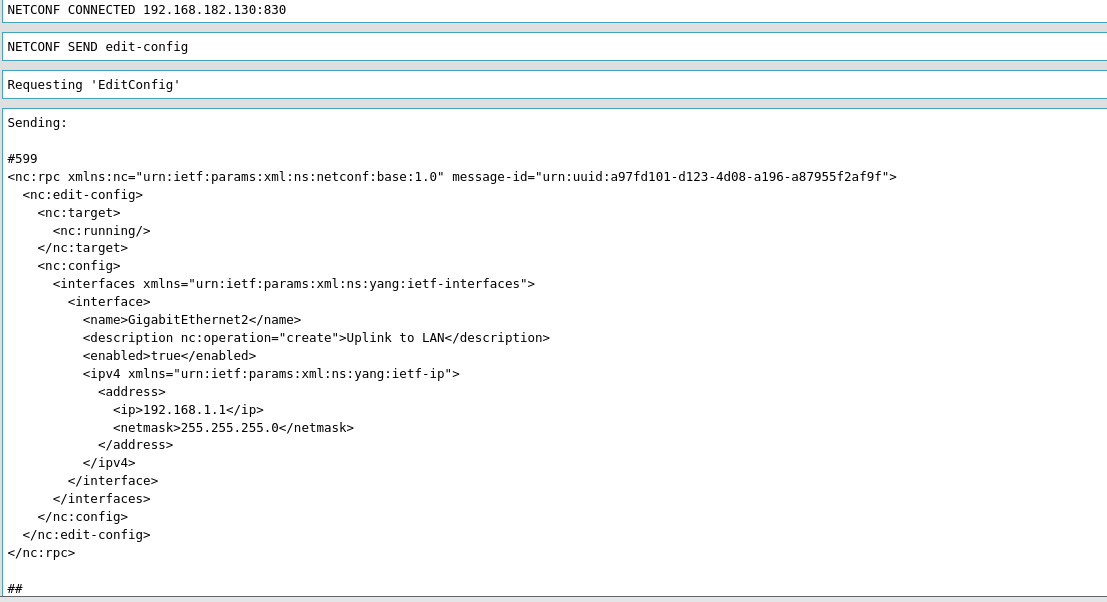

Click Build RPC to generate the XML payload.
Then click Send to push the configuration.

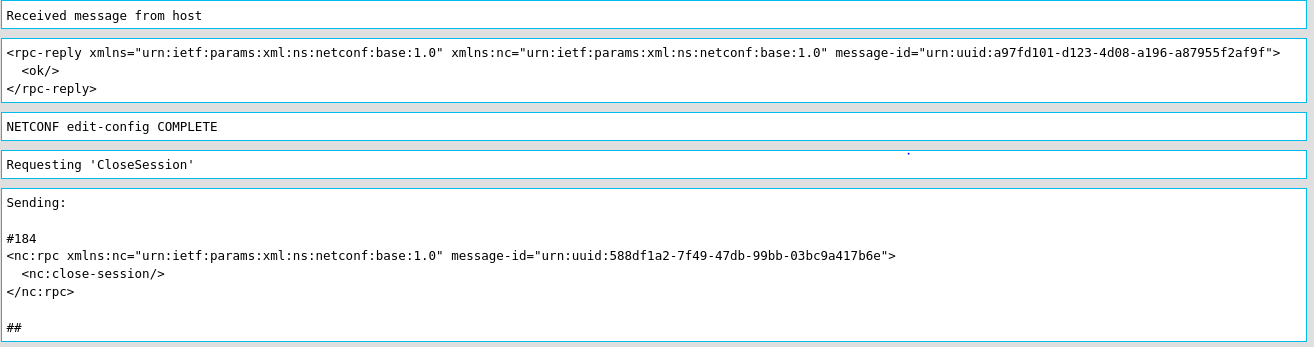

Scroll down to view the reply.

A reply of ok confirms the configuration was accepted.

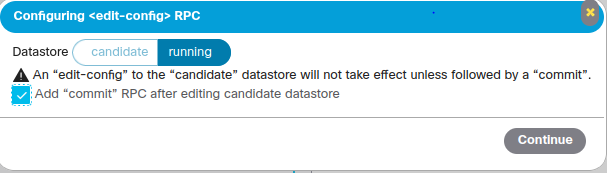

Note: Ensure the Commit checkbox is selected under RPC Options so the configuration is applied.

---

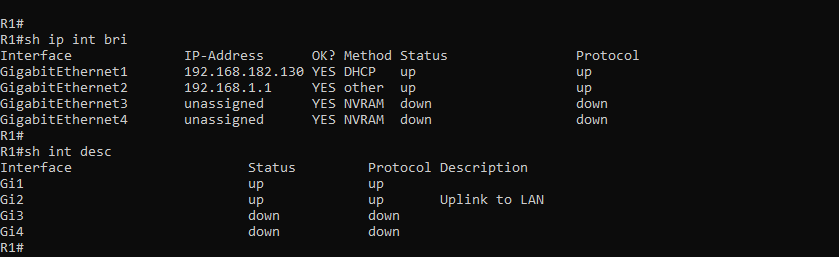

9. Verification

After applying the configuration, verify it on the router.

The interface configuration is now successfully applied.

---

10. Notes and Next Steps

This lab demonstrates configuring a single router interface using YANG Suite and NETCONF.

For configuring multiple routers, the same RPC payload can be exported and used with:

• Python
• Ansible

Under the Reply section, YANG Suite allows exporting the configuration in different formats.

In summary, this lab shows how YANG Suite can be used to:

• Explore YANG models
• Build NETCONF RPCs
• Perform basic device configuration

In the next write-up, we will explore RESTCONF, gNMI, and implement real automation across multiple devices.
